PXJ Sand Making Machine

≤190mm

Feeding size

20-310t/h

Capacity

River Pebble, Granite, Basalt, Limestone, Cement Clinker, Quartz Stone, Iron Ore, Bauxite, etc.

Get a Quote

Product Description

PXJ Sand Making Machine is a new multi-functional sand making machine designed by our company according to the needs of users and combining the advantages of foreign crushing technology. The machine has a wide range of uses and stable performance. It is an effective, practical and reliable stone crushing machine. It is especially suitable for making abrasives, refractory materials, cement, quartz sand, steel sand, slag powder, copper ore, iron ore, It is a kind of high-efficiency and energy-saving crushed stone sand making equipment, which can save 50% energy compared with traditional fine crushers.

Product Features

Reliable operation: The equipment has stable and reliable operation performance, small discharge particle size, uniform particle shape, large production capacity and long hammer life.

Stable discharge: High linear speed, wear-resistant parts material, body structure, grate plate design, and the influence of rigid hard extrusion and crushing have fully realized the effective control of the long-term stability of the discharge particle size.

Low investment, high return: The process is simplified, the structure is simple, the maintenance is convenient, and it has the function of sand making and shaping.

High degree of automation: With hydraulic lock and hydraulic adjustment functions, as well as over-iron release and cavity cleaning functions. The hydraulic system version and lubrication system it is equipped with can ensure the safe and normal operation of the equipment, especially the hydraulic system can control the push cylinder to adjust the size of the discharge port.

Working Principle

When working, the material enters the cavity from the feeding port in turn, and falls on the high-speed rotating movable hammer head. After the action between the hammer and the counterattack plate, the material is initially broken. After the material has been repeatedly hammered and counterattacked with high frequency, it will accumulate on the middle partition plate, slide down, fall on the material throwing plate of the high-speed rotating lower rotor, and be thrown to the counterattack plate at high speed to collide, fall and pass through. The mobile blow hammer is forced to counterattack, crush and grind. The ultra-fine effect is achieved after the material has undergone multiple composite crushing, scouring and grinding, and then discharged through the discharge port.

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

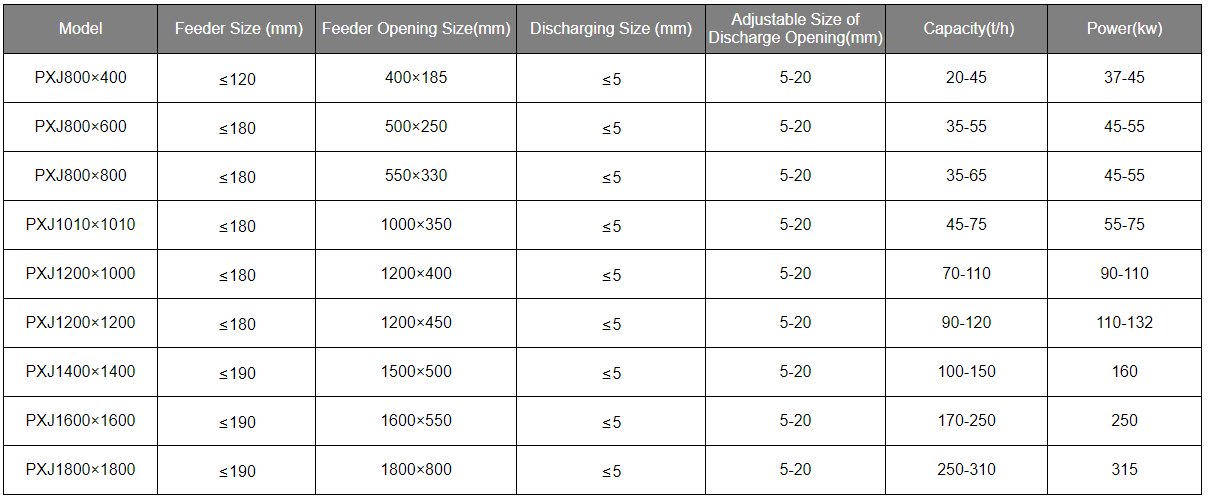

Technical Parameters

Working Principle

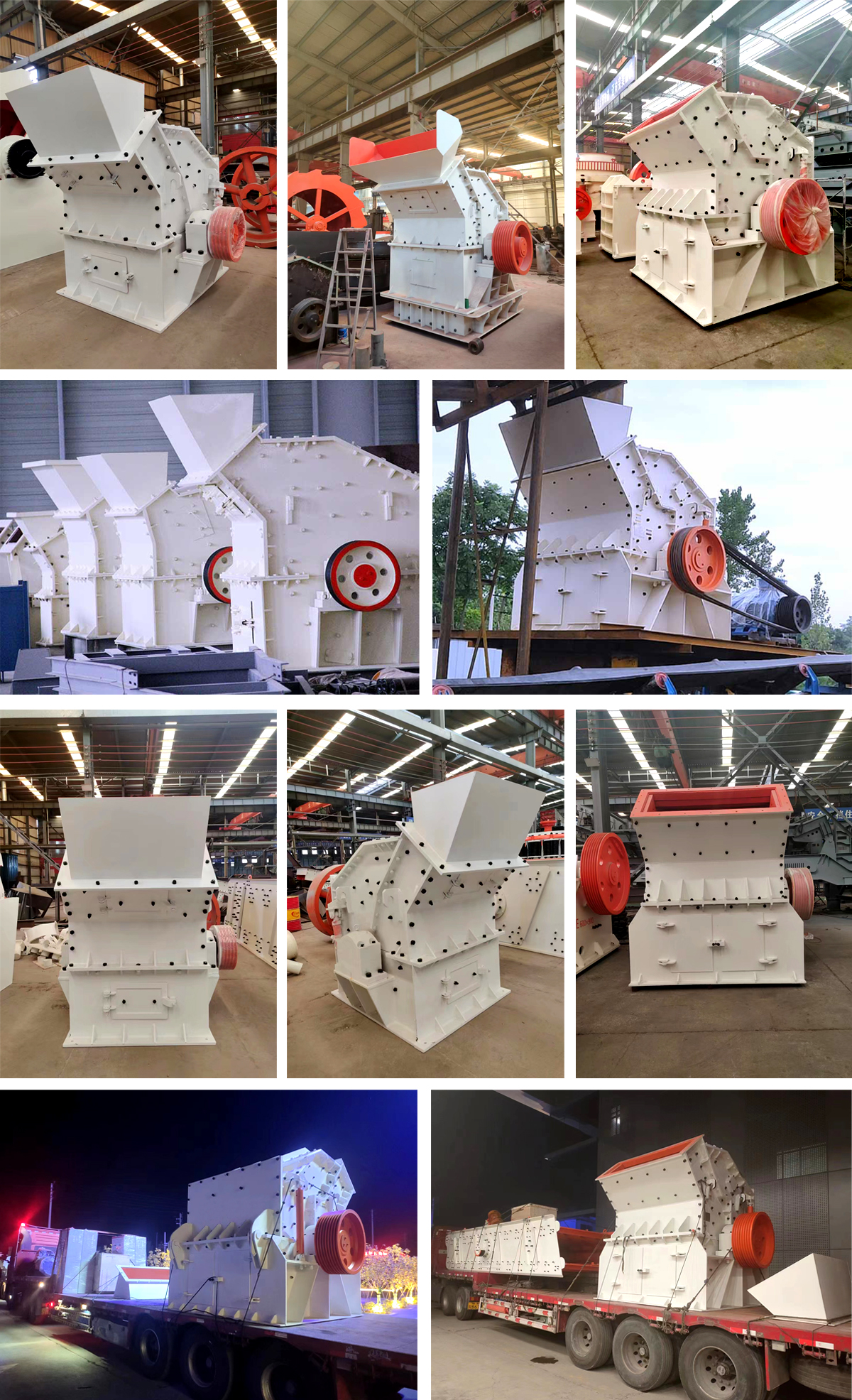

PRODUCT PHOTOS
