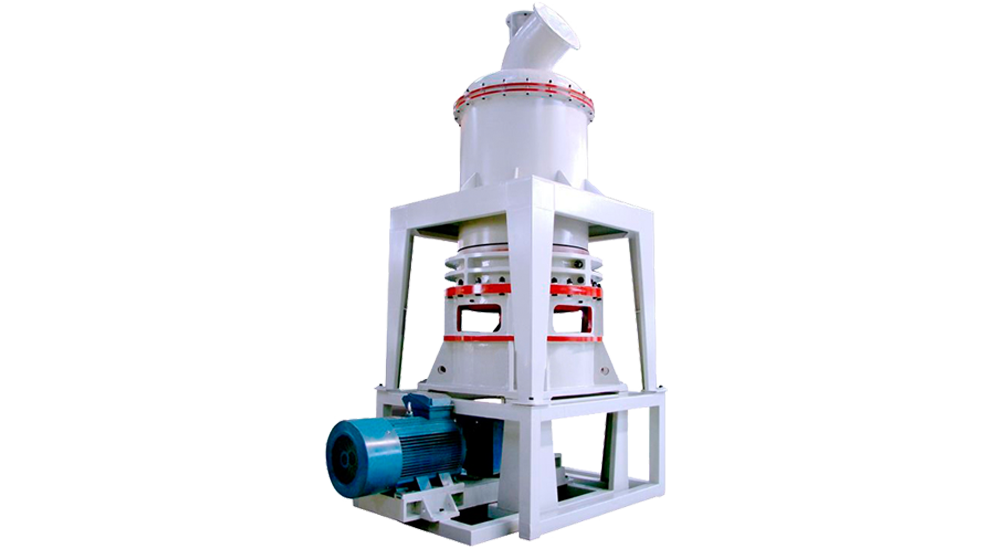

Ultrafine Mill is a new type of ultra-fine pulverizing equipment developed for ultra-fine powder processing users according to the current development trend and market demand of the milling industry, and drawing on the technologies of the milling industry in Sweden and Germany.

The main motor of the Ultrafine Mill drives the main shaft and each layer of turntables to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate in the grinding ring raceway through the pins. The bulk material is crushed into small particles by the crusher and then sent to the storage bin by the elevator. The electromagnetic vibrating feeder evenly sends the material to the middle of the upper turntable. The material is scattered to the periphery of the circle under the action of centrifugal force, and falls into the The raceway of the grinding ring is punched, rolled, ground and pulverized by the ring roller. The material falls into the second and third layers after being pulverized by the first layer. The coarse powder after the third layer pulverization is brought into the classifier. The vortex flow generated by the rotating worm gear in the powder separator makes the coarse-grained materials fall back for regrinding, while the fine powder enters the cyclone powder collector with the airflow and is discharged from the discharge valve at its lower part, which is the finished product. The airflow is purified by the pulse dust collector and discharged through the fan and the muffler.
