Belt Conveyors

1.25-2.0m/s

Feeding size

40-1280t/h

Capacity

All Kinds of Ore Rock, Crushed Stone, Coal, Sand, Cement, Grain, Fertilizer, etc.

Get a Quote

Product Description

Belt Conveyors is a kind of mechanical equipment that moves and continuously conveys materials based on the principle of friction transmission. The belt conveyor can be used in the ambient temperature range of -20°C to +40°C, and the temperature of the conveyed material is below 50°C. The production machinery and equipment form a link to connect production, so as to realize the continuity and automation of production links, improve production efficiency and reduce work intensity. Its captain and assembly form can be customized according to user requirements, which can meet the needs of different layout forms of operation lines.

Product Features

Various models: The drive of the belt conveyor can be either an electric drum or a belt-driven drive device. According to different conveying process requirements, it can be conveyed by a single unit, or combined with other conveying equipment to form a horizontal or inclined conveying system.

Simple structure: The equipment is simple in structure and standardized in components, which can be quickly repaired and operated. The frame is light and easy to disassemble and assemble.

Large conveying capacity: According to the principle of friction transmission, the conveyor belt has large conveying capacity, long conveying distance, stable conveying and low energy consumption.

Strong adaptability: It can adapt to the ambient temperature from -20°C to 40°C, and the temperature of the conveyed material is within 50°C. The conveying line has strong adaptability and flexibility.

Working Principle

The belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly sleeved on it. The roller that drives the conveyor to rotate is the driving roller; the other roller that only changes the direction of movement of the conveyor belt is called the redirecting roller. The driving roller is driven by the motor through deceleration, and the conveyor belt is dragged by the friction between the driving roller and the conveyor belt. The drive drum is generally installed at the discharge end to increase the traction force and facilitate dragging. The material is fed from the feeding end, falls on the rotating conveyor belt, and is transported to the unloading end to be discharged by the friction of the conveyor belt.

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

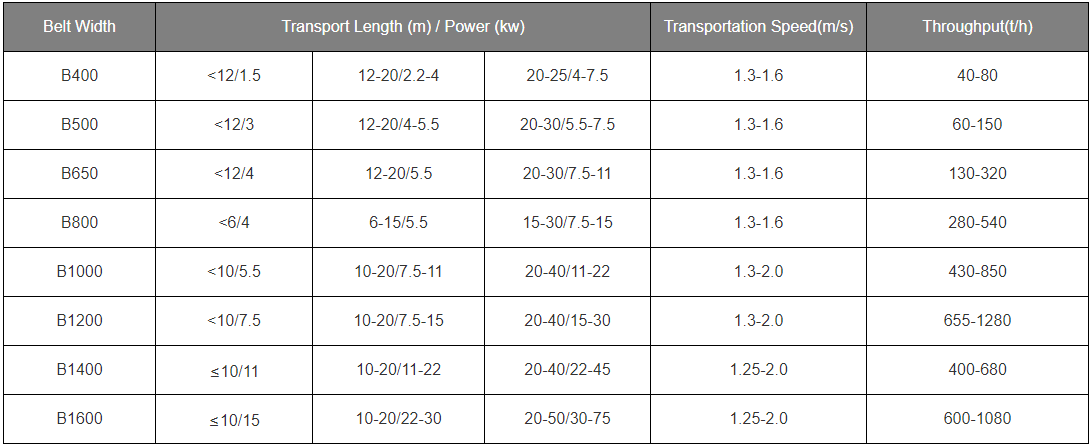

Technical Parameters

Working Principle

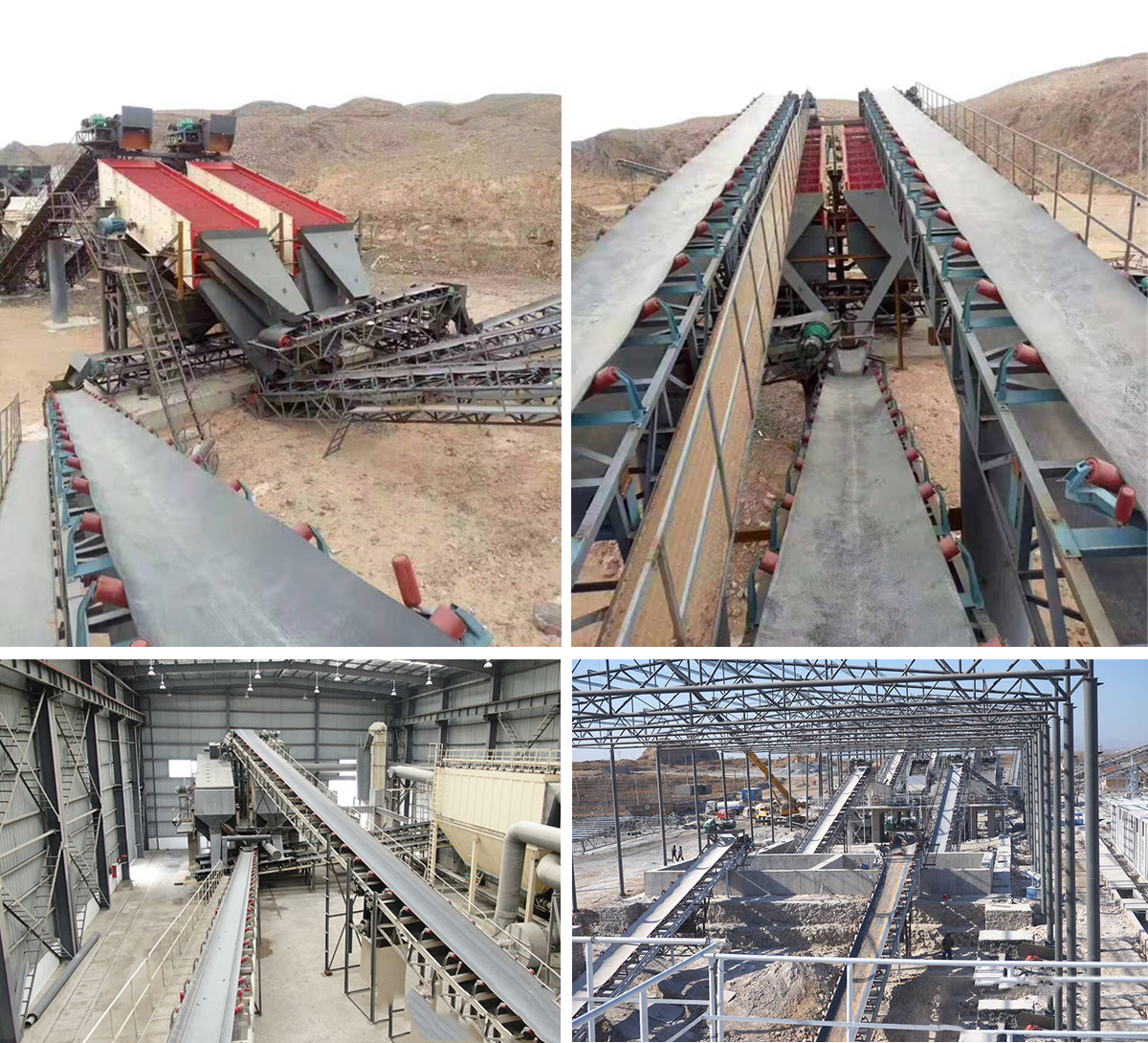

PRODUCT PHOTOS
