Vibrating Feeder

≤1000mm

Feeding size

80-800t/h

Capacity

River Pebble, Granite, Basalt, Iron Ore, Limestone, Quartz, Diabase, Iron Ore, Gold Ore, Copper Ore, etc.

Get a Quote

Product Description

The ZSW series vibrating feeder produced by our company is a new type of vibrating feeder designed for evenly conveying bulk materials before crushing and screening medium and coarse crushers. The vibrating feeder adopts the structural features of the double eccentric shaft vibration exciter to ensure that the equipment can withstand the impact of falling bulk materials and has a large feeding capacity. In the production process, the block and granular materials can be uniformly, regularly and continuously fed from the storage silo to the receiving device, thereby preventing the receiving device from crashing due to uneven feeding, and prolonging the equipment service life. The vibrating feeder can be divided into a steel plate structure and a grate structure. The steel plate structure feeder is mostly used in the sand and gravel production line, and the material is evenly fed into the crushing equipment; the grate structure feeder can coarsely screen the material. Make the system more economical and reasonable in configuration. Therefore, vibrating feeders are widely used in crushing and screening combined equipment in metallurgy, coal mines, mineral processing, building materials, chemicals, abrasives and other industries.

Product Features

The feeding capacity is large and the efficiency is high. The vibrating feeder effectively increases the speed of the eccentric shaft; the grate adopts a two-stage ladder and is installed with an inclination structure, which improves the feeding capacity and feeding efficiency;

It adopts Y series motor and frequency conversion controller, which is easy to adjust and accurate in speed regulation.

The main stress-bearing parts of the feeding box are thickened; the bottom guard plate and side guard plate are made of steel plates with higher toughness and strength to improve the wear resistance of the tank body and reduce the maintenance amount;

Simple and compact structure, small size, light weight, easy to install and debug. The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The motor drives the drive shaft through the V-belt, and then the gear on the drive shaft meshes with the passive shaft to rotate. The drive shaft and the passive shaft rotate in opposite directions at the same time, so that the tank body vibrates, so that the material flows continuously and achieves the purpose of conveying the material.

Working Principle

The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The vibration source of the vibrating feeding of the tank body is the vibration exciter. The vibration exciter is composed of two eccentric shafts (main and passive) and a gear pair. The motor drives the driving shaft through the V-belt, and then the gear on the driving shaft meshes with the passive shaft. Rotation, the main and passive shafts rotate in the opposite direction at the same time, so that the tank body vibrates, so that the material flows continuously and achieves the purpose of conveying the material

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

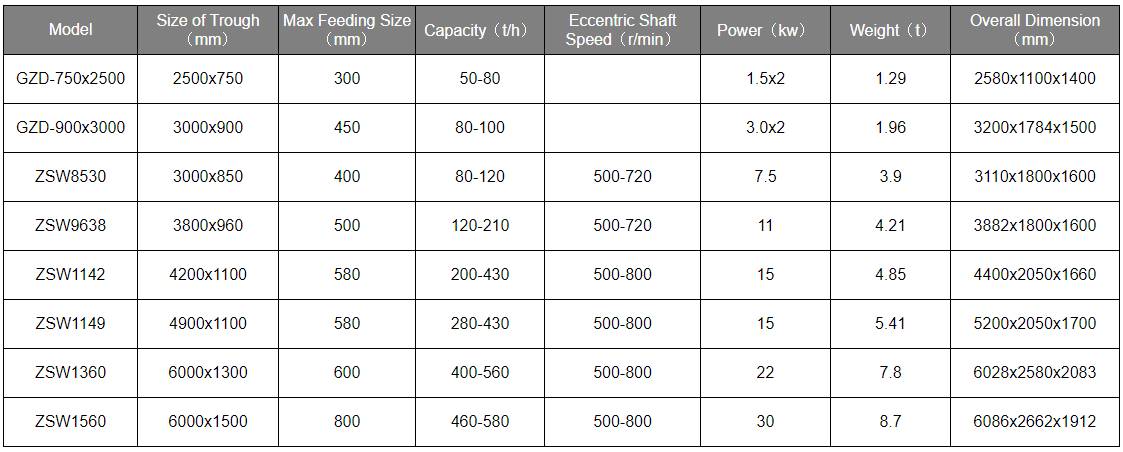

Technical Parameters

Working Principle

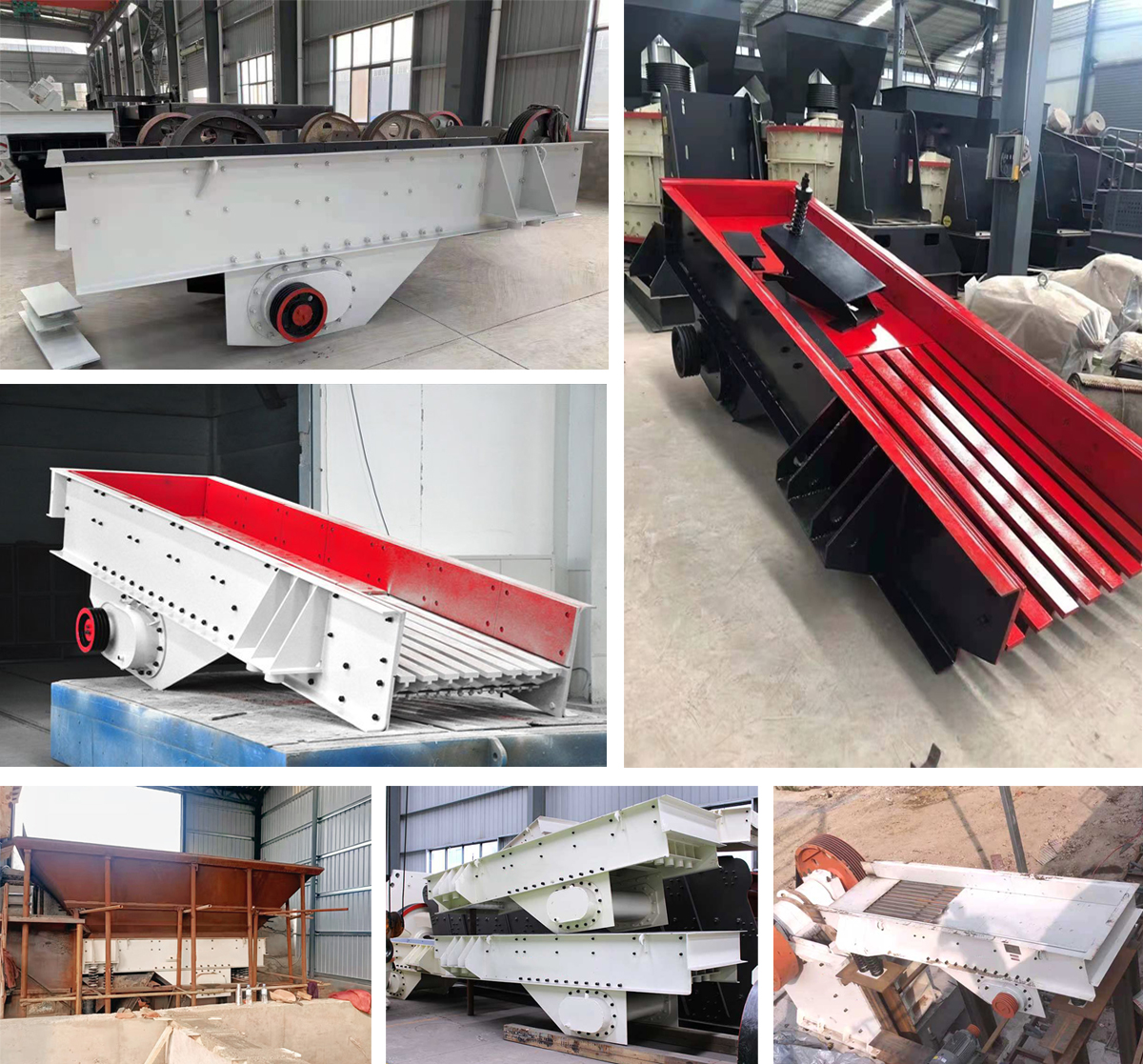

PRODUCT PHOTOS
