VSI High Efficiency Sand Making Machine

≤45mm

Feeding size

60-520t/h

Capacity

Limestone, River Pebble, Quartz Stone, Granite, Basalt, Slag and Other Rocks with Compressive Strength Between 80-300MPa.

Get a Quote

Product Description

VSI High Efficiency Sand Making Machine is a high-performance sand making equipment developed by us based on the actual conditions of sand making conditions and using the latest technological achievements. It is a perfect combination of crushing technology and mechanical technology. The special rotor structure design of this high-efficiency sand making machine, the selection of wear-resistant materials and the use of hydraulic technology can provide high-quality sand and gravel aggregates for highways, high-speed railways, high-rise buildings, municipal, hydropower dam construction, and concrete mixing plants. It is an equipment in the field of artificial sand making and stone shaping. The high cost performance and exquisite technical process ensure that the VSI high-efficiency sand making machine has a good position in the domestic sand making equipment industry.

Product Features

Low cost and low wear VSI high-efficiency sand making machine has simple and reasonable structure, low wear and low operating cost.

Powerful function, good sand making effect VSI high-efficiency sand making machine has the functions of fine crushing and coarse grinding; high crushing rate, environmental protection and energy saving.

Wide range of materials VSI high-efficiency sand making machine is suitable for crushing medium-hard and extra-hard materials; it is less affected by the moisture content of the material, and can crush stones with a moisture content of about 8%.

Energy saving and environmental protection, less dust pollution The working noise of the VSI high-efficiency sand making machine is lower than 75 decibels, and the dust pollution is less; the product is cubic, the bulk density is large, and the iron pollution is very small.

Working Principle

The material falls into the feeding hopper of the VSI high-efficiency sand making machine, and enters the high-speed rotating throwing wheel through the central feeding hole, and is rapidly accelerated in the throwing wheel. It collides with another part of the material that falls freely after the rebound, and then hits the material lining (stone hits stone) or counterattack block (stone hits iron), is rebounded and hits the top of the vortex cavity obliquely upward, and then changes its direction of movement. It moves downward and collides with the material emitted from the impeller channel to form a continuous material curtain. In this way, a piece of material is subjected to two or more chances of impact, friction and grinding and crushing in the eddy current crushing chamber. The crushed material is discharged from the lower discharge port.

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

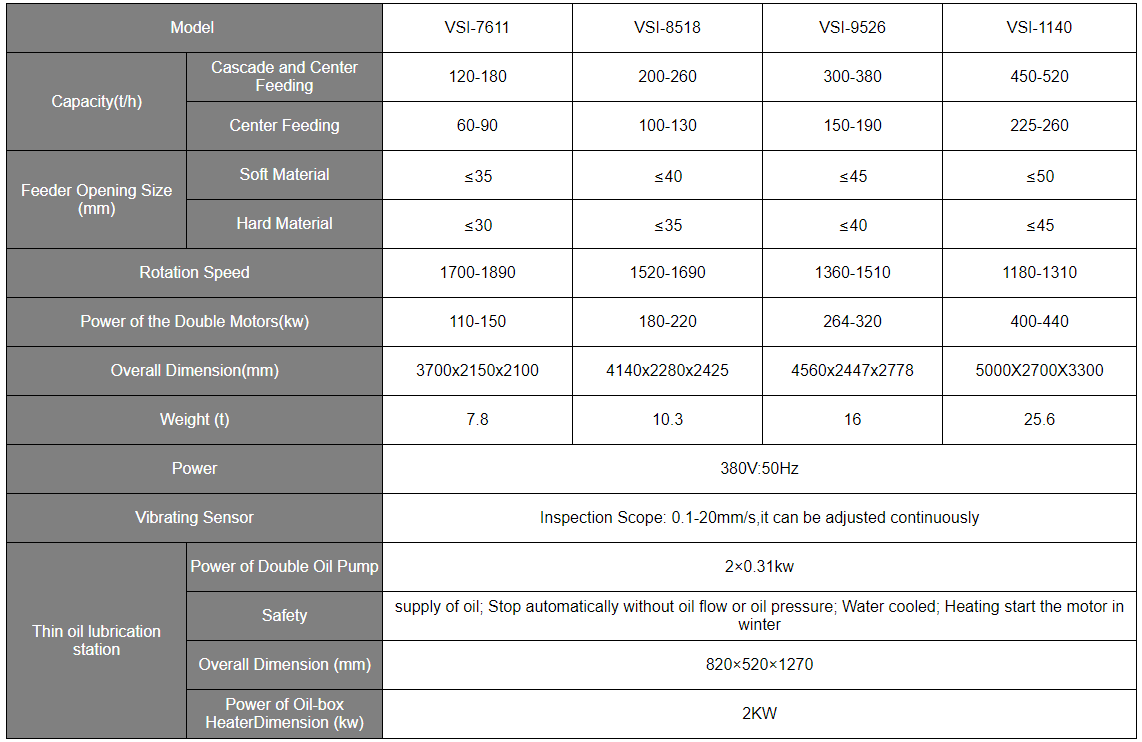

Technical Parameters

Working Principle

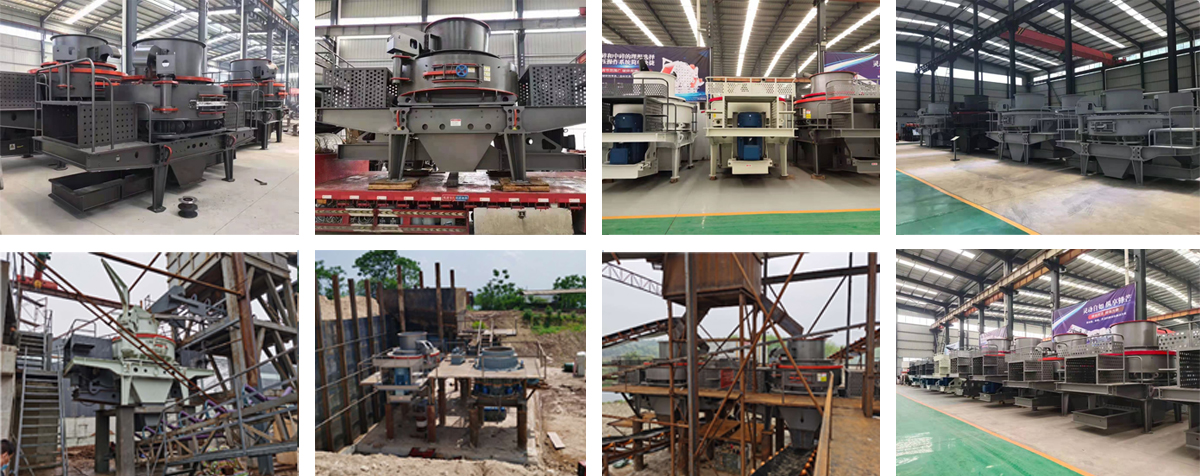

PRODUCT PHOTOS
