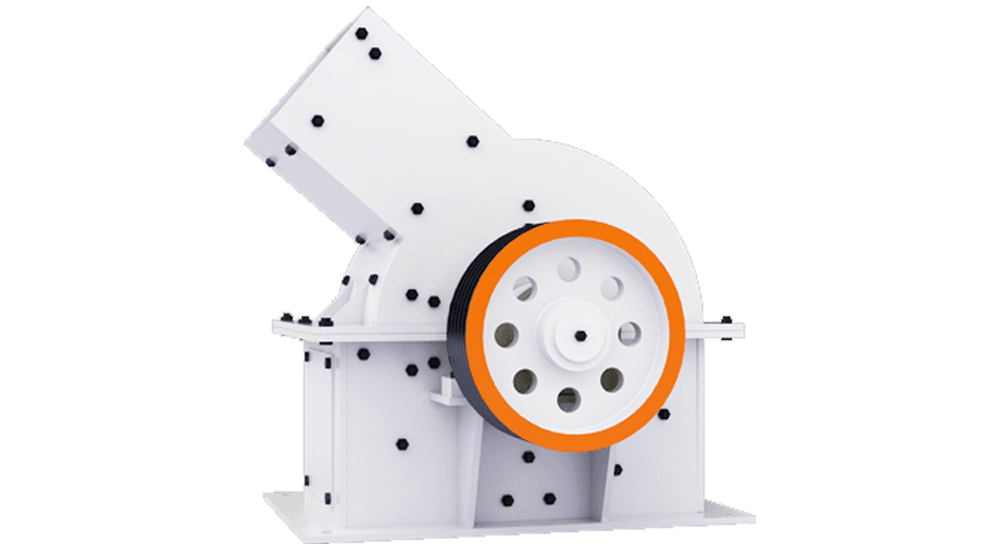

PC Hammer Crusher crushes the material through the high-speed rotating hammer body and the material collision surface. It has the characteristics of simple structure, large crushing ratio and high production efficiency. It can be used for dry and wet crushing. It is suitable for mining, cement, coal, metallurgy, etc. , building materials, roads, combustion and other departments to finely crush medium hardness and brittle materials. The machine can adjust the gap between the grate bars and change the discharge granularity according to the user's requirements to meet the different needs of different users.

The main working part of PC Hammer Crusher is a rotor with a hammer head, and the rotor consists of a main shaft, a disc, a pin shaft and a hammer head. In the lower part of the rotor, there is a sieve plate. The motor drives the rotor to rotate at high speed in the crushing chamber, and the material enters the machine from the upper feed port, and is crushed by the impact and grinding action of the high-speed moving hammer. The fine material smaller than the sieve hole size is discharged through the sieve plate, and the coarse material larger than the sieve hole size is prevented from continuing to be broken on the sieve plate, and finally discharged through the sieve plate.
