Wheel Sand Washing Machine

≤10mm

Feeding size

30-280t/h

Capacity

River Pebble, Cobblestone, Limestone, Granite, Quartz Sand, Natural Sand, Machine-made Sand, River Sand, etc.

Get a Quote

Product Description

Wheel Sand Washing Machine is a kind of wheel bucket sand washing equipment used in conjunction with the sand making machine. It has three functions of cleaning, dehydration and classification. Its novel sealing structure, fully enclosed oil bath transmission device, adjustable overflow The flow weir plate ensures the characteristics of this series of products, durability, good cleaning and dehydration effect, and stable fine-grained products. It can remove the impurities covering the surface of the sand and gravel, and at the same time destroy the water vapor layer covering the sand grains, so as to facilitate dehydration and play the role of sand washing and cleaning. It is widely used in the washing of materials in sand and gravel fields, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries. It is suitable for construction sand and road construction sand.

Product Features

The wheel sand washing machine has a simple structure, and the impeller drive bearing device is isolated from water and water-receiving materials, which greatly avoids the occurrence of damage to the bearing due to water immersion, sand and pollutants, and greatly reduces the accident rate.

There is very little loss of fine sand and stone powder, and the gradation and fineness modulus of the washed construction sand meet the standard requirements.

The wheeled sand washing machine has almost no wearing parts except the screen. It has a long service life and does not need maintenance for a long time.

The wheeled sand washing machine is easy to maintain, has large processing capacity, low power consumption and high cleaning degree.

The novel sealing structure of the equipment, the fully enclosed oil bath transmission device, and the adjustable overflow weir plate ensure the high efficiency, durability, and good cleaning and dehydration effects of this series of products.

Working Principle

When working, the motor drives the impeller to rotate slowly after being decelerated by the V-belt, reducer and gear. The sand and gravel enter the washing tank from the feeding trough, roll over under the driving of the impeller, and grind each other to remove the impurities covering the surface of the sand and gravel. Destroy the water vapor layer covering the sand grains to facilitate dehydration; at the same time, add water to form a strong water flow, take away impurities and foreign objects with small specific gravity in time, and discharge them from the overflow washing tank to complete the cleaning effect. The clean sand and gravel are taken away by the blades, and finally the sand and gravel are poured into the discharge chute from the rotating impeller to complete the cleaning of the sand and gravel.

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

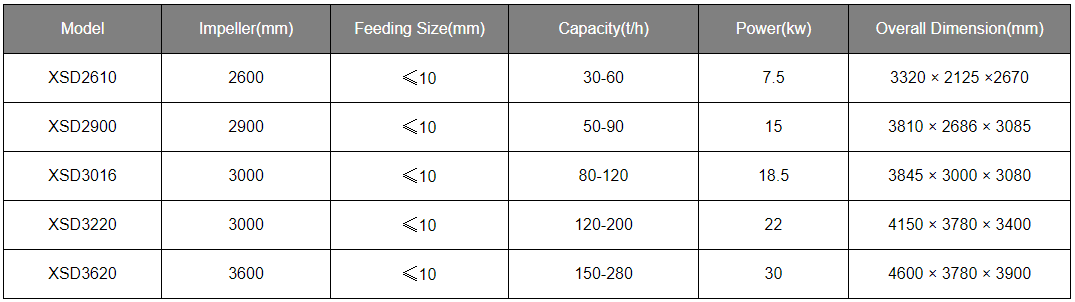

Technical Parameters

Working Principle

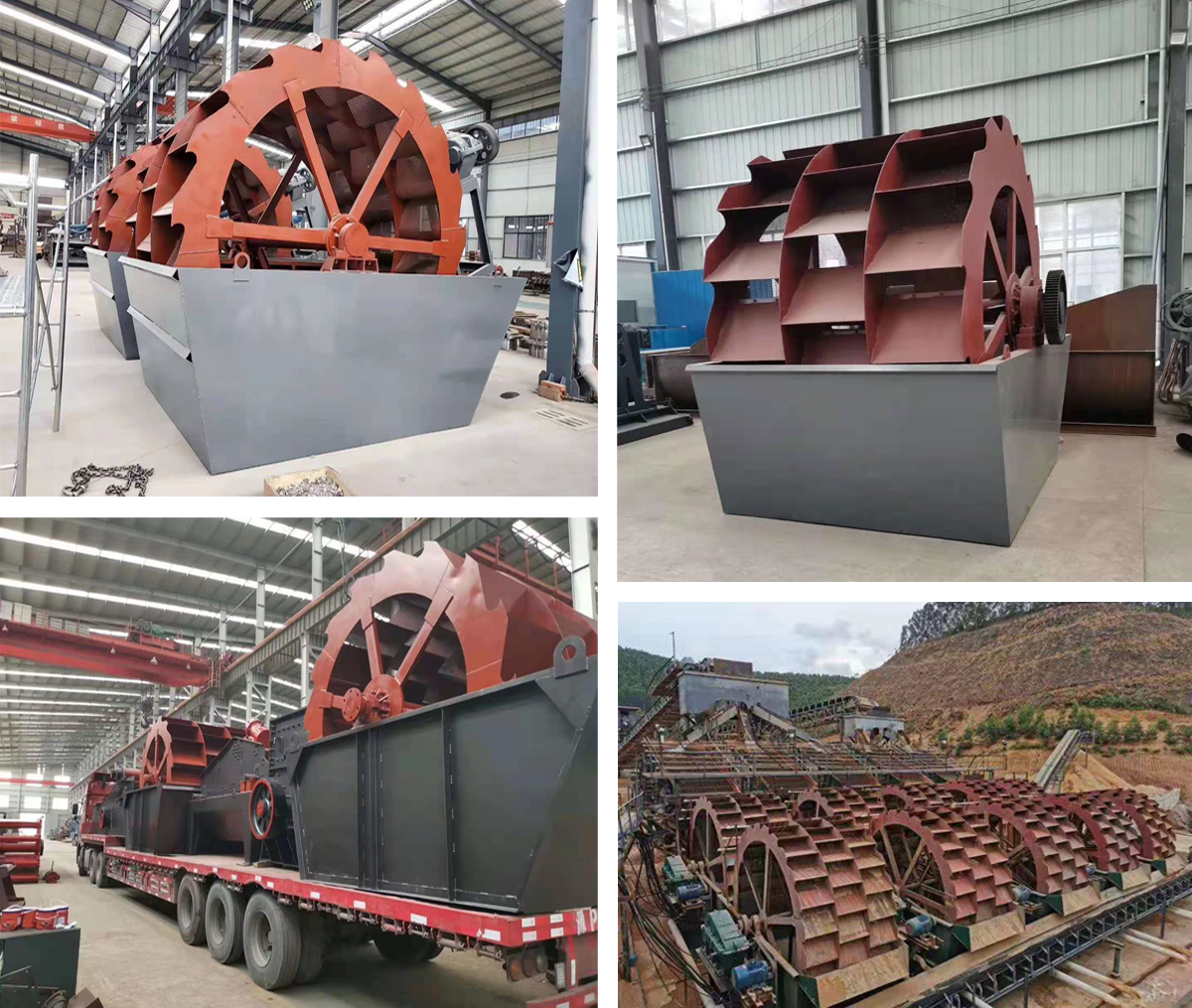

PRODUCT PHOTOS
