European Version Grinding Mill

≤50mm

Feeding size

3-50t/h

Capacity

River Pebble, Granite, Basalt, Quartz Stone, Iron Ore, Diabase, Limestone, Calcite, Dolomite, Barite, Talc, Gypsum, Bentonite, etc.

Get a Quote

Product Description

European Version Grinding Mill is a new European Version Grinding Mill newly launched by our company.And combined with the market demand of the mill industry and the actual use of the research and development of a new type of grinding equipment with excellent technical level. European Version Grinding Mill is mainly suitable for the grinding and processing of mineral products such as metallurgy, building materials, chemical industry, mining and so on.

Product Features

Bevel gear overall transmission, high efficiency: The machine adopts bevel gear integral drive, no reducer is needed, the structure is more compact, the installation and adjustment are more convenient and fast, and the failure rate is greatly reduced; the new technology adopts a new vertical pendulum grinding roller device, which increases the grinding contact area and greatly increases the efficiency.

Thin oil lubrication, energy saving: Both the fan drive system and the main shaft drive system are lubricated with thin oil, which has long oil change interval, low cost and less maintenance frequency. Built-in oil pump, automatic oil supply, reduced transmission resistance, strong power, saving 1-2 kWh/ton.

Professional configuration, low energy consumption: The fine material sorting effect is better, the powder collection efficiency is high, the airflow resistance is small, it is not easy to block the material, the fan efficiency is improved, the wear rate is low, and the utilization rate is high; the non-resistance air inlet volute and the same resistance layout plan reduce the energy consumption of the system. economic losses caused by consumption.

Pay attention to environmental protection and reduce pollution: Equipped with air self-circulation system and pulse bag filter, with automatic dust removal device, effectively collect dust, reduce environmental pollution, and meet national environmental protection standards.

Working Principle

After the raw mineral material is finely crushed, the material is sent to the small silo by the elevator, and then evenly and continuously sent into the grinding chamber of the main machine through the vibrating feeder. The shovel scoops up the material and sends it between the grinding roller and the grinding ring, and the grinding roller rolls and rolls to grind the material. The fine powder after the material is ground is brought into the analyzer for sorting with the circulating air of the blower, and the material with excessive fineness falls back for regrinding. is the finished product. In the grinding chamber, due to the moisture in the material to be ground, heat is generated during grinding, water vapor is evaporated, and the pipes of the whole machine are not tightly connected, and the external air is sucked in, which increases the circulating air pressure and ensures that the grinding machine works under negative pressure. The increased air flow is discharged into the dust collector through the residual air duct, and then discharged into the atmosphere after being purified.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

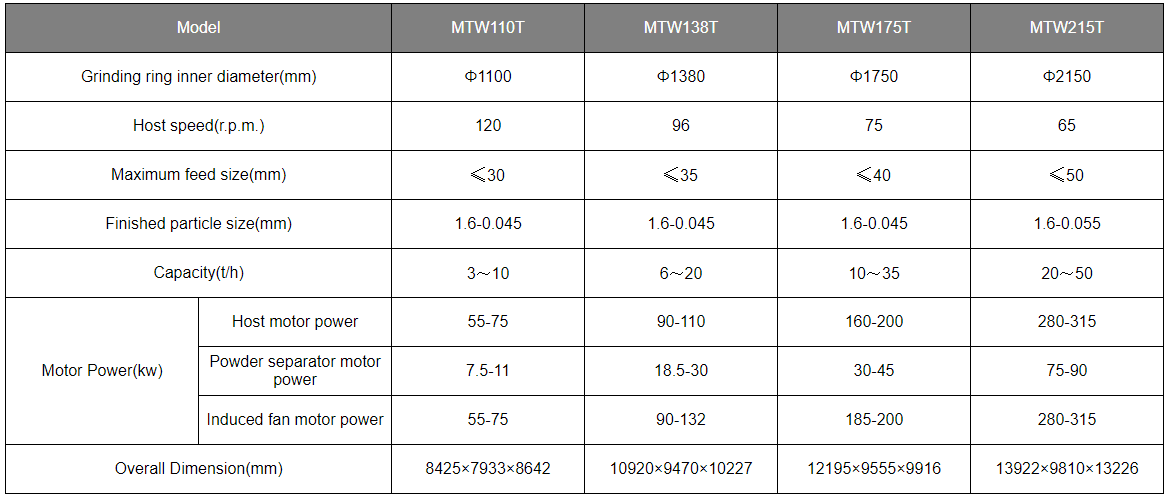

Technical Parameters

Working Principle

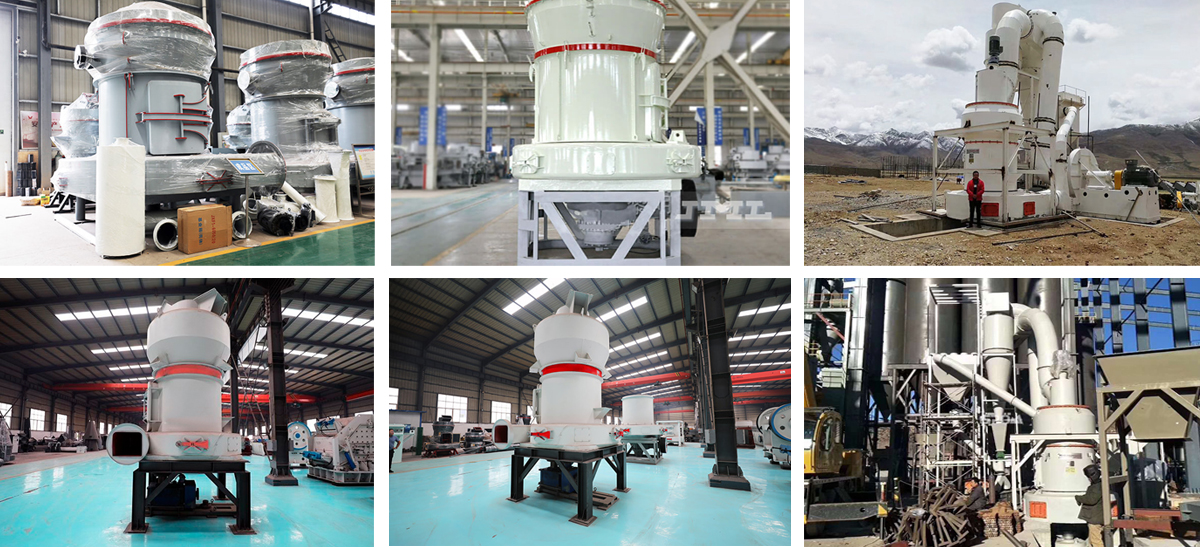

PRODUCT PHOTOS
