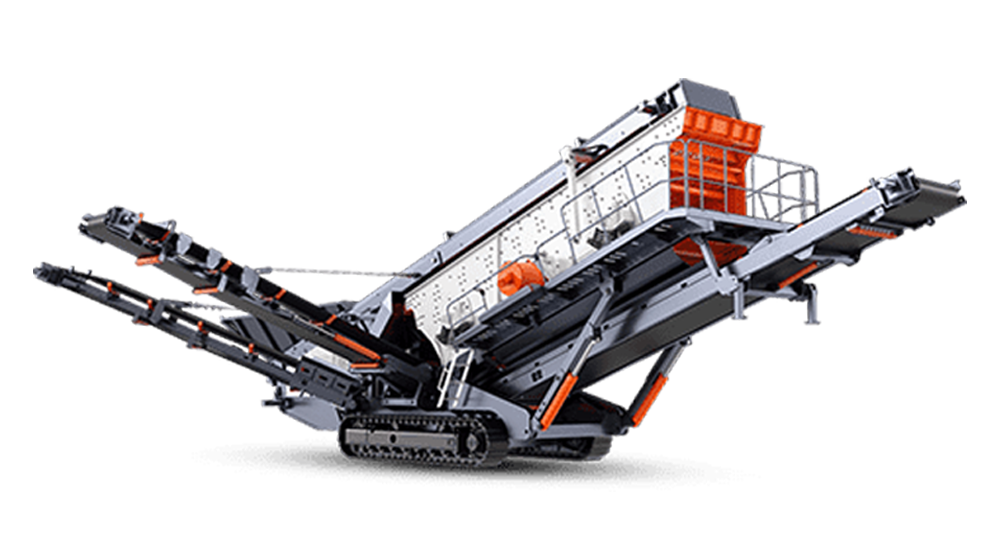

Crawler Mobile Screening and Fine Crushing Station

≤400mm

Feeding size

75-700t/h

Capacity

Limestone, River Pebble, Quartz Stone, Granite, Basalt, Slag and Other Rocks with Compressive Strength Between 80-300mpa.

Get a Quote

Product Description

Crawler Mobile Screening and Fine Crushing Station is a kind of high-efficiency screening and crushing equipment, which can be directly driven to the site, with convenient transfer operations, high screening efficiency and large output; it is especially suitable for operations in complex terrain areas such as narrow sites and urban demolition. It is especially suitable for construction waste treatment, and can also be used for mineral and hard rock screening, sand and gravel aggregate production, and can fully meet the mobile screening requirements of customers.

Product Features

Frame part: It consists of side panels, front box components, rear box weldments, etc.

The rotating part of the eccentric shaft: It is mainly composed of movable jaw, eccentric shaft, bearing, bearing seat, pulley, etc. It is the main part of transmitting power.

The working part of the crushing chamber: It is mainly composed of fixed jaw plate, movable jaw plate, side lining plate, guard plate, etc. It is the working part of the crushed material.

Safety device: It is composed of toggle plate, toggle plate seat, spring, spring tie rod, etc. It is a part of the crusher that plays an insurance role under abnormal conditions.

Discharge port adjustment device: This device is used to adjust the size of the discharge port and control the discharge particle size. It is mainly composed of adjusting the fixed oblique block, adjusting the sliding oblique block, jacking bolt, and sliding block locking rod.

Working Principle

The material is transported to the crushing equipment through the belt conveyor, and the crushed material falls into the belt conveyor and is sent out. Qualified materials are either sent from the hopper or stacked by the belt conveyor below the vibrating screen, and the unqualified large materials are directly sent back to the crushing chamber of the crusher for further crushing.

Quick Way to Get Price

Welcome to fill in the following form, leave your requirements, phone number, equipment use and other information, and describe your requirements in details as far as possible.

Crushing Equipment

Sand Making Equipment

Sand Washing Equipment

Mobile Crushing Plant

Grinding Equipment

Product Description

Product Features

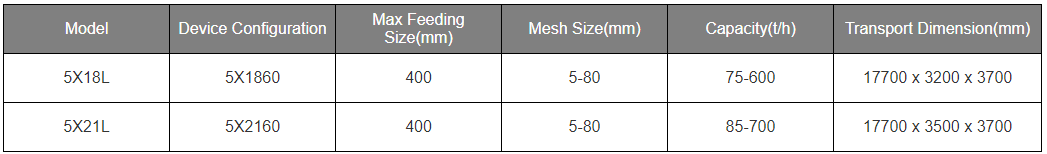

Technical Parameters

Working Principle

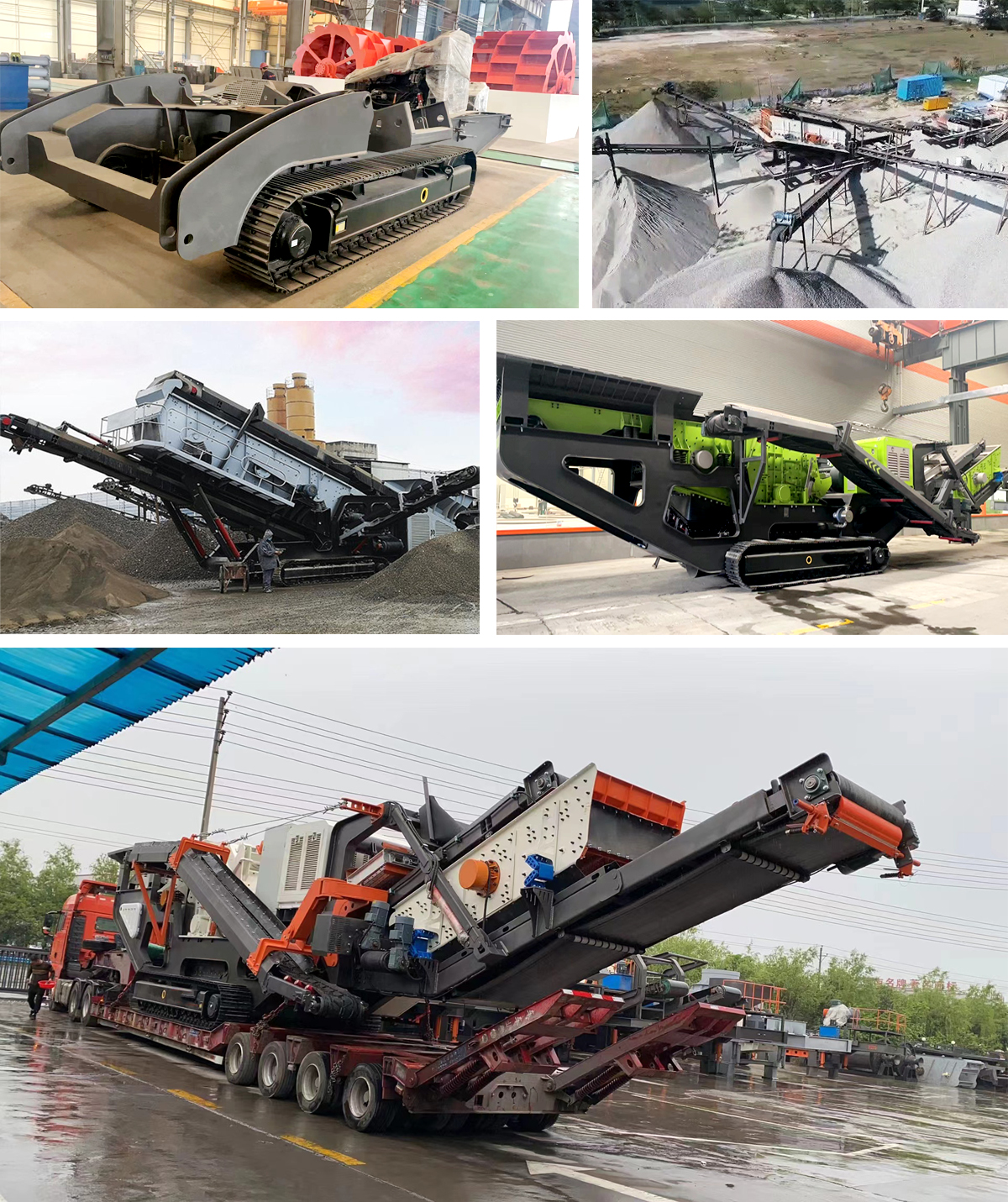

PRODUCT PHOTOS
