Roller Crusher

≤130mm

Feeding size

5-125t/h

Capacity

Granite, Basalt, Diabase, River Pebble, Limestone, Iron Ore, Quartz Stone, Iron Ore, etc.
Roller Crusher

Product Description

Roller Crusher is an environmentally friendly crushing equipment with less dust and low noise. It is mainly composed of rollers, roller support bearings, pressing and adjusting devices, and driving devices. There is a wedge or gasket adjustment device between the two rollers, which can flexibly adjust the discharge, the crushed material is cubic, and the discharge particle size is fine. It is widely used in metallurgy, chemical industry, electric power, transportation and other fields. And soft ore for medium and fine crushing.

Product Features

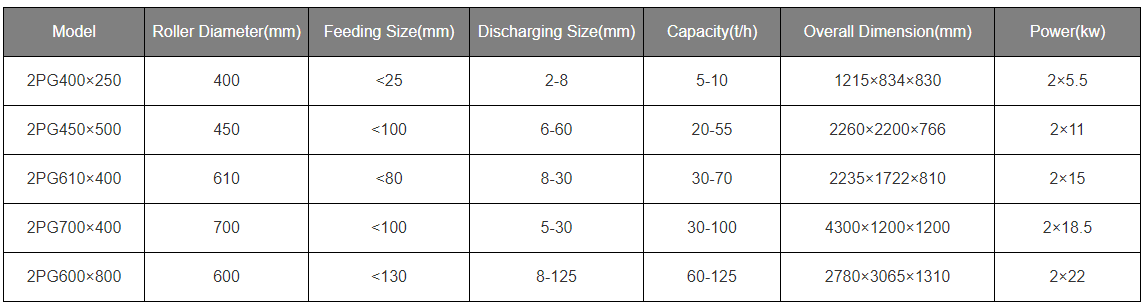

Technical Parameters

Working Principle

The crushed material is dropped between the two rollers through the feeding port for extrusion and crushing, and the finished material falls naturally. When encountering hard or unbreakable objects, the rollers can automatically retreat by the action of hydraulic cylinders or springs, so that the gap between the rollers increases, and the hard or unbreakable objects fall down, thus protecting the machine from damage. There is a certain gap between the two rollers rotating in opposite directions. By changing the gap, the granularity of product discharge can be controlled.

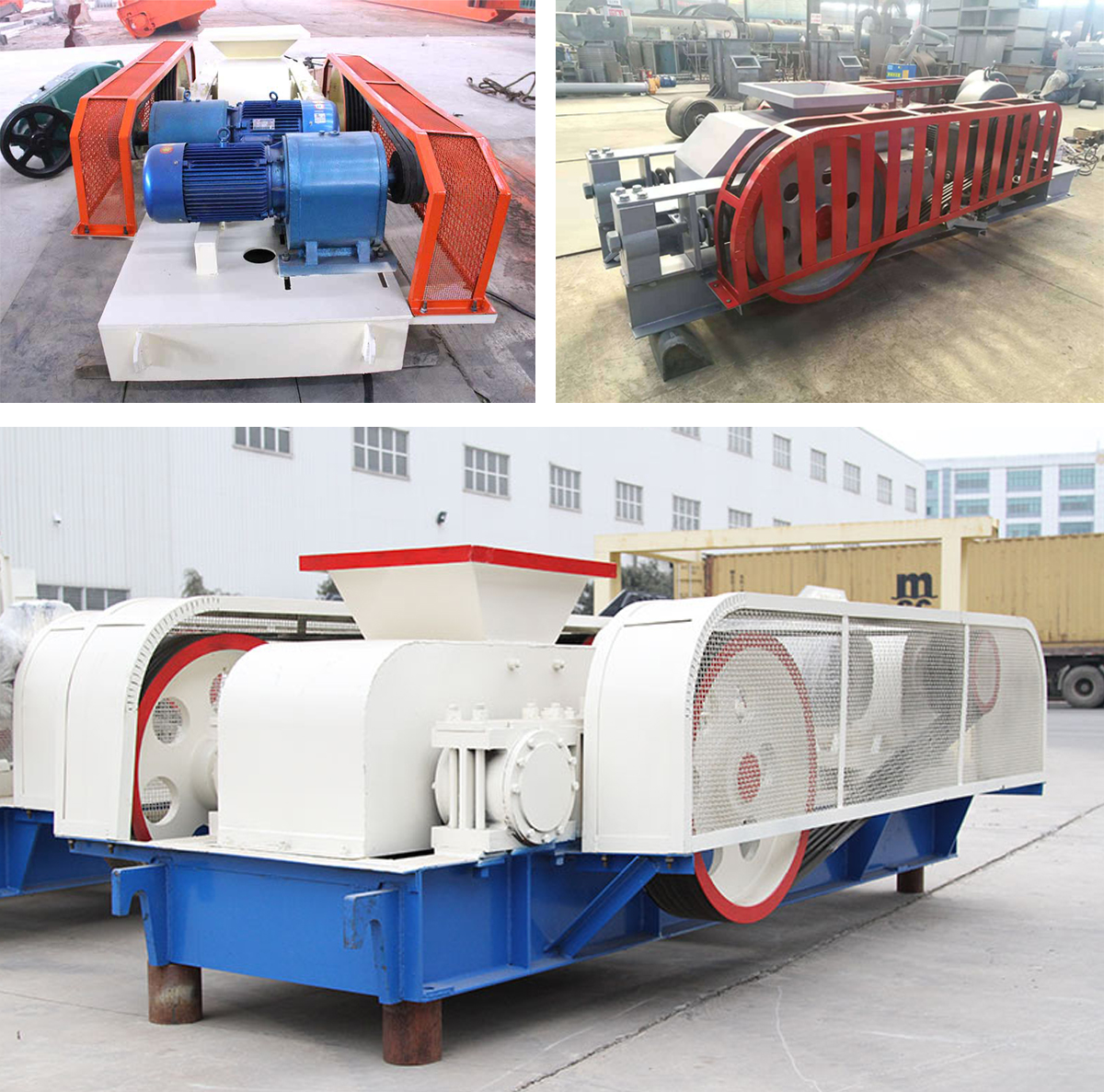

PRODUCT PHOTOS
